GRAN TURISMO 50 NEW MODEL 2026
Overall length 15,95 m
Hull length 14,1 m
Overall beam 4,48 m
Beam 4,44 m
Air draft 4,6 m
Draught 1,18 m
Light displacement CE 14 751 kg
Fuel capacity 2 x 650 L
Freshwater capacity 2 x 200 L
Hot water heater capacity 60 L
Accommodation 5
Category EC/ C12
Max engine power 2 x 480 KW – 2 x 650 HP
Naval Architect Dixon Yacht Design
Design Andreani Desig
Alpine Design & Finishes:
Furniture upholstered in Skai Navy Blue (cabins)
Interior carpet Sentiment 95 in cabins
Interior/exterior upholstery: Skai Light Grey &
Navy Blue, embroidery + Alpine logos
Matching driver/copilot seats + Alpine Isotta
Fanete steering wheel (Skai + Alcantara)
Elegant black ambience :
Black lacquered kitchen furniture (RAL 9005)
Carbon pilot console with Alpine decoration
Black hardtop with Alpine logos and decoration
Black taps, washbasin, handles, pushlock
Black details: handrails, table legs, cleats, cup
holders, liston, gates
Lighting & hull:
Spot and courtesy lighting, 100% black
Gelcoat hull : 2 versions blue in optio
Standard Equipment

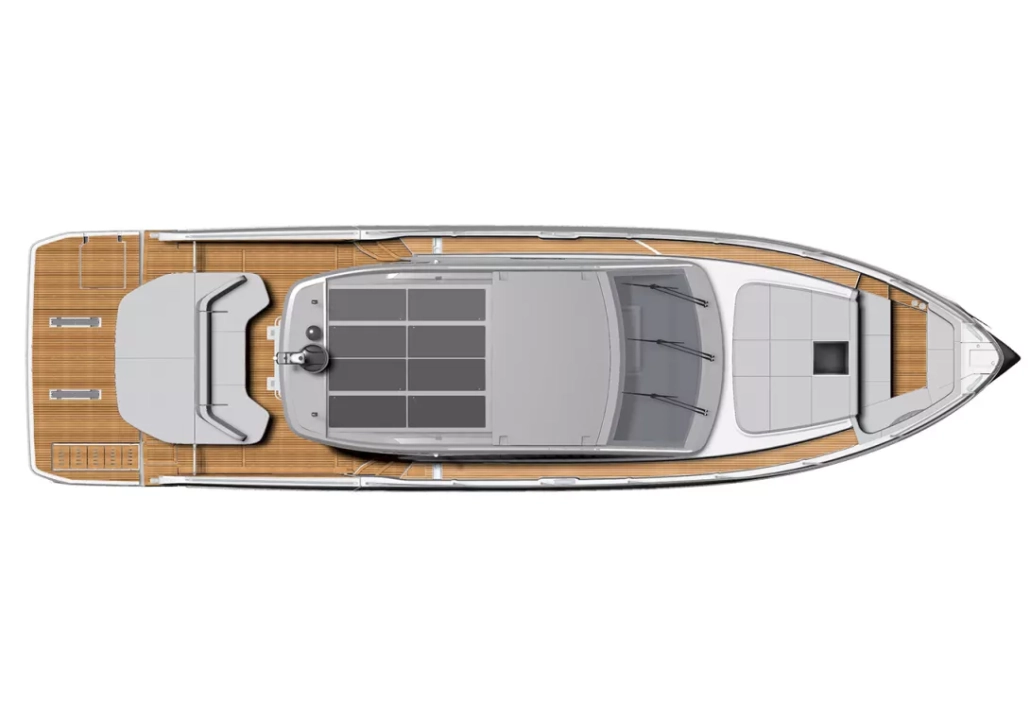

DECK EQUIPMENT
• Cockpit courtesy lighting
• Black navigation lights
• Black radar mast
• Grey hard top with electric sunroof
MOORING ANCHORING
• Retractable anchor davit with anchor locking system + anchor + chain
• Electric windlass (with remote control) power 2 300 W
• 2 retractable cleats in the bow, 2 in the centre and 2 in the stern in
aluminium/titanium
COCKPIT
• Slatted cockpit
• Wheelhouse glazing + Wheelhouse access door with opening window
• Aft cockpit bench seating facing each other – black gelcoat finish + covers
black gelcoat finish + protective covers
• Aft sunbathing area with headrest (folding bench seat back)
• Solid wood folding cockpit table (2 positions) with 4 cup holders + 2
handrails + 2 USB A/C sockets + cover 1 220 V socket under starboard steps
• 1 storage locker (under forward bench seat)
• Removable stainless steel shelf
• Access hatch to engine room
• Storage locker for BIB (under forward bench seat)
• Fixed bathing platform with batten (4, 2 x 1.85 m / 13’9’“ x 6’1”’) + Stainless
steel swim ladder with wooden steps
• Dinghy garage :
-Tender (220 cm / 7’3”)
Opening assisted by 2 electric jacks
• 2 slatted side decks with opening assisted by electric jack, handrails
• 2 safety gates
FOREDECK SUNPAD
• Foredeck sunpad + protective cover
• 5-person U-shaped saloon + 5 cupholders + 2 USB A/C sockets + cover
• Anchor locker with dedicated space for fenders

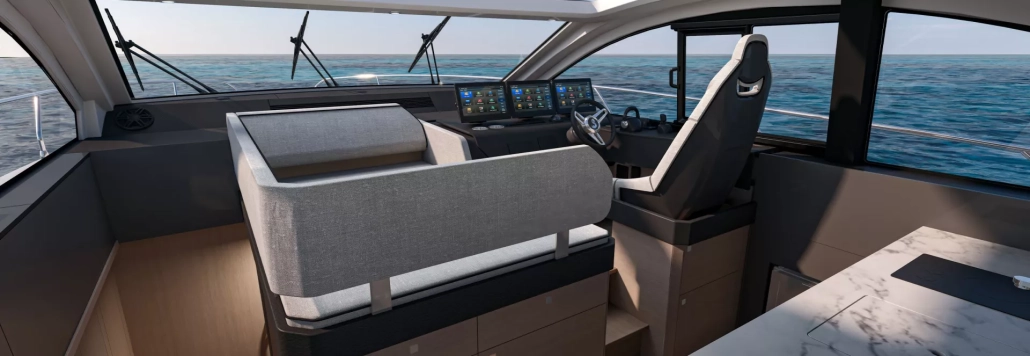

INTERIOR PILOT STATION
• Pilot console with engine control and joystick, compass, USBA/C socket, 2 cup
holders
• Sliding pilot seat with Bolster function – black PVC/Alcantara upholstery
• Leather steering wheel
• Footrest in front of pilot seat
• Fusion RA210 + 4 speakers 7, 7’‘ (2 in cockpit + 2 exterior hardtop)
• Anti-reflective screen under windshield in “carbon” color PVC
• Demisting system
• 2 Volvo 2.5’’ displays
• 2 induction phone chargers
• Windshield with 3 integrated electric wipers
• Horn
• U-shaped co-driver’s bench seat matching exterior upholstery + 2 cup holders +
2 USBA/C sockets
GALLEY
• Stainless steel sink with black retractable mixer tap
• 2-burner induction hob
• White Corian worktop
• Refrigerator Freezer with drawers 182 L
• 5 Storage drawers
• Waste bins
• 1 microwave
• Furniture lacquered black/matte grey Grigio Bromo
• 2 storage cupboards
• 2 Electrical sockets
• Navicolor control screen
• Electrical battery switch
• Leather handrails
• Grey ceiling canvas
• Lower deck gangway with 2 handrails

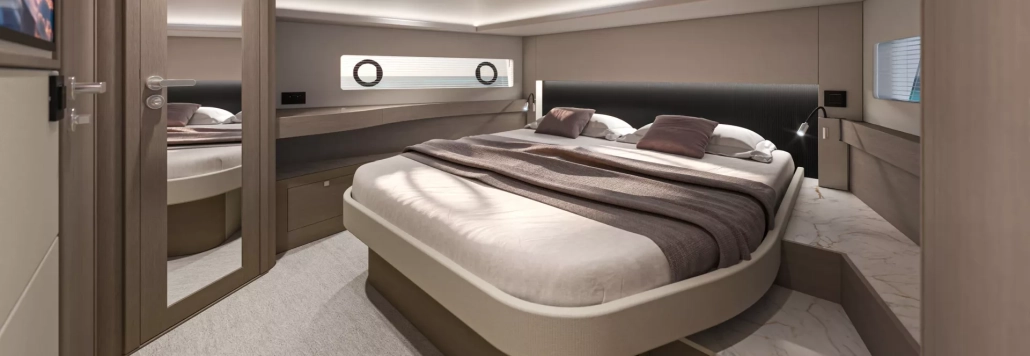

OWNER CABIN (FRONT)
• Double bed
• Mattress with slatted base
• Headboard in wood decor with indirect lighting
• Large storage box under mattress with gas struts
• 1 Wardrobe with shelves
• Space for TV (50”)
• Dressing table with backlit mirror and storage space
• 3 electrical outlets
• 2 reading lights with USBA/C socket
• 2 panoramic windows with opening portholes and blinds
• 1 skylight with blind
• 1 mirror on access door to ensuite head
• White ceiling canva
• Beige carpet
• Direct and indirect lighting
EN SUITE HEAD (PORTSIDE)
• Sink with mixer tap
• Backlit mirror
• 1 storage cupboard with 2 shelves
• 1 open niche with 1 electrical socket
• 2 opening portholes
• Separate shower with integrated seat and rain shower
• White Corian shower base
• LUXE electric WC
• 2 glass cup holders
• 2 hooks
VIP CABIN (REAR STARBOARD)
• 2 single beds
• Mattress with slatted base
• 1 additional double bed
• 2 reading lights with USBA/C socket
• 2 additional USBA/C sockets
• 1 bedside cabinet with drawer
• 1 closet with 2 shelves
• 1 desk with integrated dressing table
• 1 hull window with integrated opening porthole
• 2 electrical sockets
• Direct and indirect lighting
• Space for television (32”)
• Beige carpet
THIRD CABIN (REAR PORTSIDE)
• 1 single bed
• Mattress with slatted base
• 1 reading light with USBA/C socket
• 1 wardrobe
• 1 bedside cabinet with drawer
• 2 electrical sockets
• 1 hull glazing with integrated opening porthole
• Direct and indirect lighting
• Beige carpet
DAY HEAD (STARBOARD)
• Sink with mixer tap
• Backlit mirror
• 1 storage cupboard with 2 shelves
• 1 storage column with 2 shelves
• 1 electrical socket
• 2 opening portholes
• Separate shower White Corian shower base
• WC electric LUXE
• 2 cup holders
• 2 hooks
MOTORISATION
• Motorisation Volvo Diesel D6 IPS 650 2 x 480 CV + JOYSTICK DOCKING (2 écran Volvo 2,5’‘)
• Motorisation Volvo Diesel D6 IPS 650 2 x 480 CV + JOYSTICK DRIVING (1 écran Volvo 7’’)
• Motorisation Volvo Diesel D6 IPS 650 2 x 480 CV + Active Corrosion protection + JOYSTICK
DOCKING (2 écran Volvo 2, 5”) US ONLY
• Engine Volvo Diesel D6 IPS 650 2 x 480 HP + Active Corrosion protection + JOYSTICK DRIVING
(1 screen Volvo 7”) US ONLY
• Electronic engine controls
• Fuel filter with decanter
• Engine-integrated seawater filter
• Air intakes on deck for engine hold cooling
• Engine room insulated with soundproofing foam
• Stainless steel fuel fittings
• 2 Aluminum fuel tanks, capacity 650 L / 172 US Gal each
• Electric power steering
• Volvo IPS : Trip computer, Cruise control, Single lever, Low speed
• Active Corrosion Protection System: electronic anode US ONLY
ELECTRICITY
• 4 Engine batteries (12 V – 120 Ah) + 4 AGM service batteries (12 V – 140 Ah)
• 1 Fire extinguisher
• Charge distributor
• Battery charger (24V – 100Ah)
• Interior 220 V sockets
• Shore power socket (220 V – 63Ah)
• LED spotlights and reading lights
• TV antenna
• Manual shore power extension lead (15 m)
JUNE 2025ENGLISH / Standard Equipment
PLUMBING
• Fresh-water tanks (2 x 200 L / 53 US Gal)
• Rigid black-water tank (120 L / 32 US Gal)
• Grey-water tank (45L / 12 US Gal) with automatic discharge
• Stainless-steel water hose
• Dockside fresh-water outlet
• Water unit for pressurizing hot/cold water system
• Water heater 60 L / 16 US Gal
• 2 Bilge pumps :
1 Electric bilge pump on transom (90 L / 24 US Gal /minute)
1 Manual bilge pump under starboard catwalk (30 L / 8 US Gal /minute)
SMART BOARD
SEANAPPS” connected technology:
Allows you to monitor your boat’s condition and receive alerts and maintenance recommendations via the
associated mobile application.
The type of information collected (GPS position, batteries, engine info, navigation data, etc.) varies
according to boat configuration.
ENGLISH / Optional equipment
INTERIOR LAYOUT / ONBOARD COMFORT
• Reversible water chilled air conditioning wheelhouse (230 V – 50 Hz – 18,000 BTU)
• Reversible water chilled air conditioning wheelhouse / third cabin (230 V – 50 Hz – 12,000 BTU)
• Reversible water chilled air conditioning forward cabin / owner’s head (230 V – 50 Hz – 12,000 BTU)
50 Hz – 12,000 BTU)
• Reversible water chilled air conditioning guest cabin / starboard aft head (230 V – 50 Hz – 12,000
BTU)
• Table art kit – 6 persons
• Wine cellar – 12 bottles
• Icemaker
• Safe
• Porthole mosquitos screens
WATER SYSTEMS
• Grey water tank 245L / 65 US gal deck drain only (with fresh water capacity reduction 200L/53 US
Gal instead of 400L/106 US Gal)
ELECTRICITY
• Cablemaster system 230 V/50 Hz (15 m – 63 Ah) shore power extension
• Cablemaster system 230 V/50 Hz (15 m – 63 Ah) shore power extension for air conditioning
• Generator (12.8 KVA 230 V / 50 Hz)
• TV prewiring (50”) in hard top
NAVIGATION ELECTRONICS
• Garmin Fantom 18X Radar Black
• Garmin map
• Garmin Auto Pilot
• Garmin Virtual Anchor
• Assisted docking Garmin
TRIM LEVELS
CONSTRUCTION
• White infused hull – inverted bow
• Composition: Sandwich (Vinylester resin – Fiberglass – Balsa core)
• Infused hull with counter mould
• Infused deck with counter mould
• 12 Opening portholes
MISCELLANEOUS ITEMS
• Smoke detector
• Owner’s manual
ENGINE
• Proportional bow thruster
• Gyroscopic stabilizer SK6
• Automatic fire extinguisher in engine compartment
• Fuel tanks (2 x 930 L / 2 x 246 US Gal)
• Automatic flaps zipwakes
EXTERIOR OPTIONS
• Mooring kit (mooring lines + fenders)
• Carbon folding gangway
• Dinghy inflator/deflator
• Exterior wheelhouse window curtains Solstis black and interior venetian blinds on patio door
• Self-supporting hardtop cap Graphite
• Aft cockpit closing kit Graphite
• Sun awning for cockpit + balconies Solstis black
• Sun awning for foredeck Solstis black
• Kenyon mobile barbecue
• Irodeck on foredeck
• Awl Grip metallic hull paint

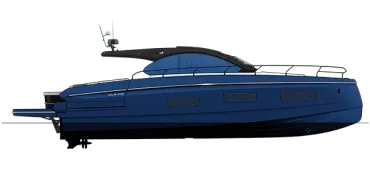

ALPINE VERSION ONLY:
Hull + foredeck + bulwark + Abysse dark blue glazing screen-printed
Hull + foredeck + bulwark + Vision Alpine blue glazing screen-printed
Essential Comfort Lounge
Pre wiring for generator
Pre wiring for air conditioning
Garmin 16’‘ screen + Sounder
Garmin map
Sliding windows in wheelhouse
Ship Control
Inverter 24V 2000 KVA
Cockpit shower
Deck wash pump for anchor locker
Lenco flaps
LED deck searchlight and rear spotlights
Hydraulic swim platform with steps, integrated tender supports and
removable ladder (max. weight: 400 kg / 882 lbs)
12.8 KVA Generator
Dishwasher 6 place settings
Additional outdoor refrigerator 75L / 20 US Gal
Villeroy & Bosch crockery set 6 place settings (glasses, cutlery and crockery)
JUNE 2025ATMOSPHERE
Standard Option
Interior woods
• Walnut Grey
• Laminate Lindberg Cross-Cut Oak
• Flooring Oak Brush Bleached
Cabins carpet
• Skye 03 X
Upholstery (exterior + wheelhouse)
• Linetex Chalk
• Crevin Strada 07
Others
• Pilot seat (leather + Alcantara black)
• White hull
• Hard top Signal grey RA7004
• Metallic hull paint
ALPINE VERSION
• Blue leather padding (owner’s cabin + guest cabin)
• Sentiment 95 carpets in cabins
• Black fittings + washbasin + Corian in the 2 shower rooms
• Black door handles + pushlock (furniture)
• Interior/exterior handrails, balconies, table legs, cup holders, black access doors and liston (PVC)
• Corian in black kitchen
• Kitchen furniture lacquered black RAL 9005
• Pilot console in black carbon + Alpine decoration
• Black exterior popup cleats replacing standard titanium aluminum popup cleats
• Hardtop black Alpine decoration on black hardtop + Alpine logos (hardtop, side platforms, pilot console)
• Skai cool Navy Blue / Light Grey pilot seat + Alpine logo
• Skai cool Navy Blue / Light Grey exterior / interior upholstery with Alpine embroidery
• Flip up backrests for foredeck sunpad
• Steering wheel with Alpine Isotta Fanete Exo Alcantara color and Skai cool Light Grey stripe
• Black spotlights and courtesy lighting
PACKS
ELECTRONIC PACK PREMIUM
• 2 ADDITIONAL SCREENS 16’’ GARMIN 1623 XSV GPSMAP
• REAR CAMERA GARMIN GC245
• RECEIVER AIS 800 GARMIN
• VHF GARMIN 315I
ENTERTAINMENT PACK OWNER CABIN
• FUSION APOLLO RA670 + 2 SPEAKERS (6.5’‘)
• TV PRE WIRING (50’’) + SOCKET + ANTENNA SOCKET
SILENT BOAT PACK
• 4 SOLAR PANELS (TOTAL : 520 Wp)
• 4 LITHIUM BATTERIES (200 Ah – 24V)
• INVERTERS 5000 KVA + 8000 KVA (24V)
LIGHT AND SOUND PACK
• APOLLO RA 770 FUSION + 6 SPEAKERS 3I SERIES (7.7”) + RGBW SUBWOOFER
• LUMISHORE INDIRECT LIGHTING HULL AND PILOT STATION
• LUMISHORE INDIRECT LIGHTING COCKPIT
• UNDERWATER LIGHTS
ENTERTAINMENT PACK VIP CABIN
• FUSION APOLLO RA670 + 2 SPEAKERS (6.5’‘)
• TV PREWIRING (32’’) + SOCKET + ANTENNA SOCKET
