GRAN TURISMO 40 INBORD & OUTBORD VERSION READY 2026
SPECIFICATIONS-PROVISIONAL SPECS -INBORD VERSION
MAIN SPECIFICATIONS DATA
Length Overall 12,53m
Hull Length 10,80m
Overall Beam 3,64m
Water Draft (full load) 1,20m
Air Draft (included radar support, light load) 3,90m
Light Displacement 8,600 kg
Berths 4
EC Certification B8 / C10 / D10
Architect Michael Peters Yacht Design
Designer Andreani DesignCAPACITY
Fuel : IB : 2 x 435 L – 2 x 115 US Gal
OB : 2 x 600 L – 2 x 159 US Gal
Water 255 L
Water hot tank 25 L
MOTORISATION / PERFORMANCE
OB : 2 X 400 HP
IB : 2 X 370 HP
Black water tank 80
Standard Equipment
DECK EQUIPMENT
• Cockpit courtesy lighting
• Black navigation lights
• Black radar bracket
• Grey hard top with electric opening roof
MOORING ANCHORING
• Retractable bow fitting with anchor locking system
• Electric windlass (with remote control) 1700W
• 2 retractable cleats forward, 2 in the centre and 2 aft in aluminium/titanium
COCKPIT
• Wheelhouse glazing + Access door (aft bay) opening inwards + large vertical
opening window
• 2 opening portholes (to aft cabin)
• Aft cockpit bench seating (black gel coat finish)
• Solid wood folding cockpit table (2 positions) with electric stand, 4 cup
holders + 2 handrails
• 1 storage locker (under bench seating) with space for BIB
• Opening hatch for access to engine hold with electric jack
• IB version: Fixed bathing platform with stainless steel swim ladder
• OB version: 2 fixed bathing platforms with stainless steel swim ladder
• 2 slatted side decks with electrically-assisted opening, handrails
• 2 safety gates
FOREDECK SUNPAD
• Slatted step for access to the anchor locker
• Sunbathing area forward with seat including lift-up backrest 4 cup holders + 1
USB A/C socket
• Anchor locker with dedicated space for fenders
INTERIOR PILOT STATION
• Console with engine controls and joystick, compass, USB A/C socket, 3 cup
holders
• Sliding pilot seat with Bolster function – black PVC/Alcantara upholstery + USB
A/C socket
• Leather steering wheel
• Footrest in front of pilot seat
• Fusion RA210 + 4 speakers 7, 7” (2 in cockpit + 2 cockpit)
• Anti-reflective under windscreen in carbon-coloured PVC
• Demisting system
• 1 Engine screen (depending the choice of engine)
• 2 induction chargers for telephone
• Glass windscreen with 3 integrated electric windscreen wipers
• Horn
• Co-driver bench seat matching exterior upholstery + handrail
EXTERIOR GALLEY
• Stainless steel sink with black retractable mixer tap
• White Corian worktop
• 2 x 75L drawer refrigerators
• 3 Drawers and 1 shelf
• Waste bin
• Black/matt lacquered furniture Grigio Bromo
• 1 waterproof socket
• 2 USB A/C sockets
• Leathered handrails
Access to lower deck with handrail
• Courtesy lighting in staircase
• Storage space
• Space for microwave oven (optional)
• 3 storage cupboards

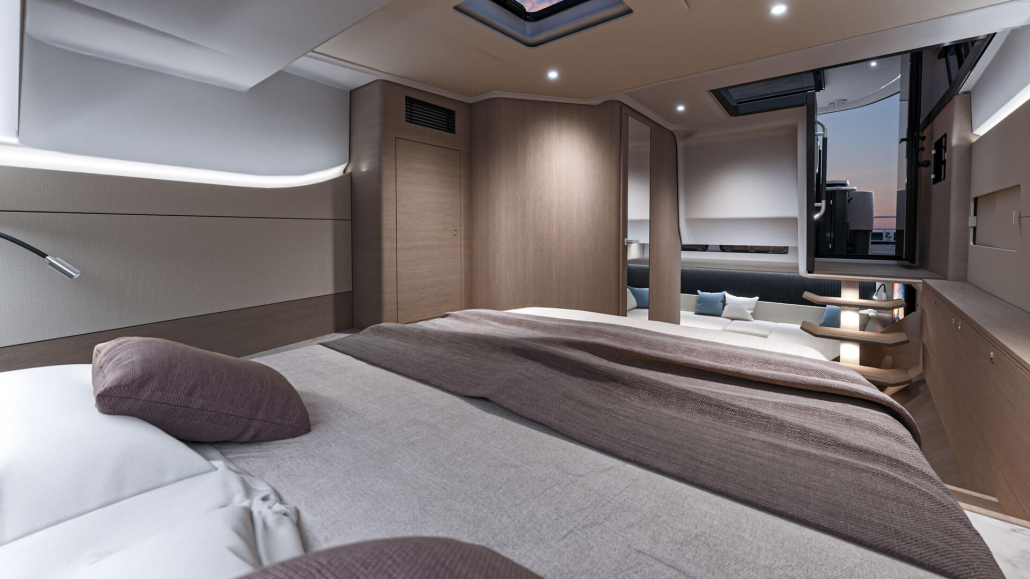

OWNER CABIN (FRONT)
• Double berth
• Mattress
• Headboard wood decor panels with indirect lighting
• Storage locker under mattress
• 1 Wardrobe with shelves
• 2 Electrical sockets
• 2 Reading lights with USBA/C socket
• 1 Deck window with 2 opening portholes
• 1 Opening deck hatch with blind and mosquito screen
• 1 Mirror on bathroom access door
• White ceiling
• White paneling
• Direct and indirect lighting
DAY HEAD (PORTSIDE)
• Basin with mixer tap
• Backlit mirror
• 1 base unit with shelves
• 1 opening deck panel with blackout blind and fly screen
• Separate shower with shelf white Corian shower base
• LUXE electric WC
• 2 glass cup holders
• 1 coat hook
MID CABIN (REAR)
• U-shaped lounge area convertible into : 2 single beds or 1 double bed with additional sleeping
space
• 2 reading lights with USBA/C socket
• Wooden decor panels with indirect lighting
• 2 opening portholes with blinds
• 1 electrical socket
• Direct and indirect lighting
• Space for television (32”)
MOTORISATION
2 x YANMAR 8LV Z-Drive 370 HP + Joystick (Standard)
2 x MERCURY V10 400 HP XXXL (Standard)
2 x MERCURY V10 400 HP XXXL + Joystick (Option)
US VERSION:
2 x YANMAR 8LV Z-Drive 370 HP + Joystick (Standard)
2 x MERCURY V10 400 HP XXXL + Joystick (Standard)
Electronic engine controls
Fuel filter with decanter
Seawater filter integrated into engine
Air intakes on hull for engine hold cooling
Engine room insulated with soundproofing foam
Stainless steel fuel lines
Electric power steering
Yanmar version:
2 rotomoulded tanks capacity of 2 x 435 L / 115 US Gal each
Mercury version:
EUROPE: 2 Aluminium fuel tanks capacity of 600 L / 159 US Gal each
US: 2 Aluminium fuel tanks EPA CARB capacity of 600 L / 159 US Gal each
ELECTRICITY
• 2 fire extinguishers
• Battery charger (12V – 100Ah)
• 220 V interior sockets
• Shore power socket (220 V – 32Ah)
• LED spotlights and reading lights
• Manual shore power extension lead (15 m)
• Space for 2 AGM engine batteries (12 V – 140 Ah) + 3 AGM service batteries (12 V – 140 Ah) (not supplied)
PLUMBING
• Fresh water tank (1 x 255 L / 67 US Gal)
• Rigid black water tank (80 L / 21 US Gal)
• Grey water tank (7 L / 2 US Gal) with automatic discharge
• Stainless steel water filler
• Water generator for pressurising the hot/cold water system
• Water heater 25 L / 7 US Gal
• Deck wash pump for mooring (in anchor locker)
• Cockpit shower with mixer tap
• 2 Bilge pumps :
1 Electric bilge pump on transom (90 L / 24 US Gal /minute)
1 Manual bilge pump under port side catwalk (30 L / 8 US Gal /minute)
CONSTRUCTION
• Hull (contact process) white – reverse bow
• Composition: Sandwich (Vinylester resin – Glass fibre – Balsa core)
• Contact process hull with counter mould
• Contact process deck with counter mould
SMART BOARD
SEANAPPS” connected technology:
Allows you to monitor the condition of your boat and receive alerts and maintenance
recommendations via the associated mobile application.
The type of information collected (GPS position, batteries, engine information, navigation
data, etc.) varies according to the configuration of the boat.
MISCELLANEOUS ITEMS
• Smoke detector
• Owner’s manual
JULY 2025ENGLISH / Optional equipment
INTERIOR LAYOUT / ONBOARD COMFORT
• Tropical 20,000 BTU reversible air conditioning Cabins + Pilot station + Manual shore power extension
(15 m) for air conditioning
• Tableware kit – 6 persons
• Porthole mosquitos screens
• Slatted bed base
WATER SYSTEMS
• Grey water tank 95L / 25 US gal deck and sea drain (with fresh water capacity reduction 160L/ US Gal
instead of 255L/ US Gal)
• Grey water tank 95L / 25 US gal deck drain only (with fresh water capacity reduction 160L/ US Gal
instead of 255L/ US Gal)
ELECTRICITY
• Generator (6.5 KVA 230 V / 50 Hz)
• Generator pre-wiring (incompatible with silent boat pack)
NAVIGATION ELECTRONICS
• Garmin Fantom 18X Radar Black
TRIM LEVELS
ENGINE
• Proportional bow thruster 100 kgF
• Gyroscopic stabiliser SK3
• Automatic fire extinguisher in engine hold
• Auto Flush system: engine cleaned with fresh water
• Automatic zipwakes flaps
EXTERIOR OPTIONS
• Windlass chain counter
• Mooring kit
• Self-supporting hardtop cap Graphite
• Foredeck sun awning Solstis black
• Cockpit and side platforms sun awnning Solstis black
• Aft cockpit closing kit Graphite
• Exterior curtains for wheelhouse black
• Set of protective covers (cockpit bench seats, galley, table and forward sunpad area)
• Folding carbon gangway
• Dinghy inflator/deflator
ATMOSPHERE
Comfort Lounge
Standard Option
• Deck wash outlet (aft cockpit)
• Dockside fresh water inlet
• Pre-wiring for Air Conditioning
• Garmin 16″ screen + sounder
• Sliding opening windows in wheelhouse
• White pleated blinds in cabins
• 12V 2KVA inverter
• Garmin world map
• Deck seachlight
• Battery charge indicator
Interior woods
• Walnut Grey
• Laminate Lindberg Cross-Cut Oak
Exterior upholstery + wheelhouse
• Linetex Chalk
• Crevin Strada 07
Interior upholstery
• Crevin Club 5
• Crevin Onix 05
• Diana 27 Bone
• LED rear spotlights in hardtop
• Microwave
• Cockpit grill
• Fridge / Freezer (75L / 20 US Gal) replacing 1 external standard
Others
• Pilot seat (Leather + Black Alcantara)
• White hull
• Hard top Signal Grey RA7004
• Hull gelcoat Signal Grey RA7004
ALPINE VERSION
• Skai cool Navy Blue coating on furniture (owner’s cabin + guest cabin)
• Black taps + washbasin + Corian in shower room
• Black door handles + pushlock (furniture)
• Handrails inside / outside, balconies, table legs, cup holders, black access doors and liston (PVC) black
• Corian exterior kitchen black
• Kitchen furniture lacquered black RAL 9005
• Pilot console in black carbon + Alpine decoration
• Black exterior popup cleats replacing standard titanium aluminium popup cleats
• Black hardtop
• Alpine decoration on black hardtop + Alpine logos (hardtop, side platforms, pilot console)
• Pilot seat + co-pilot bench Skai cool lightgrey / Skai cool Navy blue + Alpine logo
• External upholstery Skai cool lightgrey / Skai cool Navy blue with Alpine embroidery
• Steering wheel with Alpine logo Isotta Fanete with Skai cool lightgrey stripe + Alcantara EXO
• Black spotlights
• Black exterior courtesy lighting
• Gelcoat hull Signal Grey RAL7004
PACKS
ELECTRONIC PACK PREMIUM
• 1 ADDITIONAL SCREEN 16” GARMIN 1623 XSV GPSMAP
• REAR CAMERA GARMIN GC245
• RECEIVER AIS 800 GARMIN
• VHF GARMIN 315I
• AUTO PILOT GARMIN
ENTERTAINMENT PACK MID CABIN
• FUSION APOLLO RA210 + 4 SPEAKERS (6,5”)
• PRE WIRING TV (32″) + POWER SOCKET, ANTENNA SOCKET
• BLACK ANTENNA
SILENT BOAT PACK
• 4 SOLAR PANELS (TOTAL: 520 Wp)
• 5 LITHIUM BATTERIES (330 Ah – 12V)
• 5KVA INVERTER (12V)
LIGHT AND SOUND PACK
• FUSION APOLLO RA 670 + 6 SPEAKERS 3I SERIES (7,7”) + RGBW SUBWOOFER
• INDIRECT LIGHTS LED RGBW HULL AND DRIVER STATION
• INDIRECT LIGHT LED RGBW COCKPIT
• UNDERWATER LIGHTS (x2) RGBW
